Lacquer Overspray on Original Lacquer Selmer Saxophones

On Selmer saxophones of certain vintages, the last coat of lacquer was applied after the horn was complete including padwork. They would cork the keys shut and apply the last coat, which resulted in the pad leather outside of the tonehole having a very light coat of lacquer. It made no difference to the longevity of the pads since the uncoated portion- the portion on the tonehole and inside the tonehole- is the “working” portion of the pad. I’m not certain, but consensus seems to be that this was a USA-assembled Selmers only thing, from Balanced Action through Mark VI, maybe Mark VII. Its only meaning is that it is an additional way to *sometimes* tell if a Selmer has its original pads.



Video of an example of lacquer overspray on a 53xxx Selmer Super (Balanced) Action tenor:

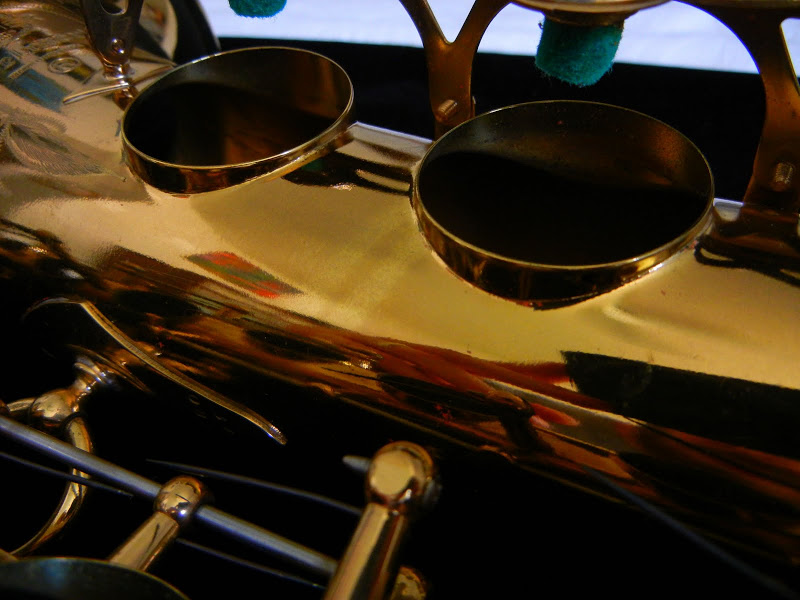

Another example, this one pictorial.  This is a Selmer alto, a Mark VI, that was made in 1966.  The lighter stripes in the photo below are the shadows from key arms as the last coat of lacquer was applied with the instrument assembled. Why two key arms? See the last picture for the answer!

DSCN2066

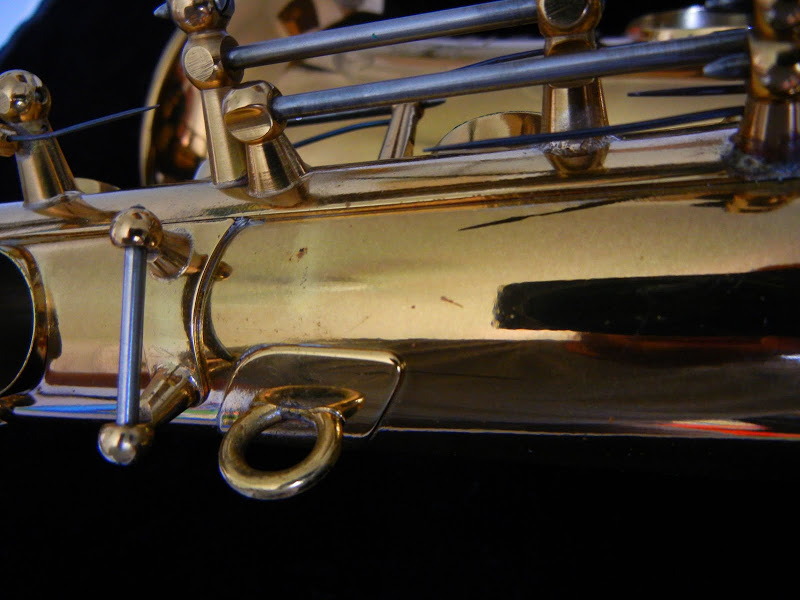

Another key shadow from lacquer overspray, this one from the side Bb arm:

DSCN2068

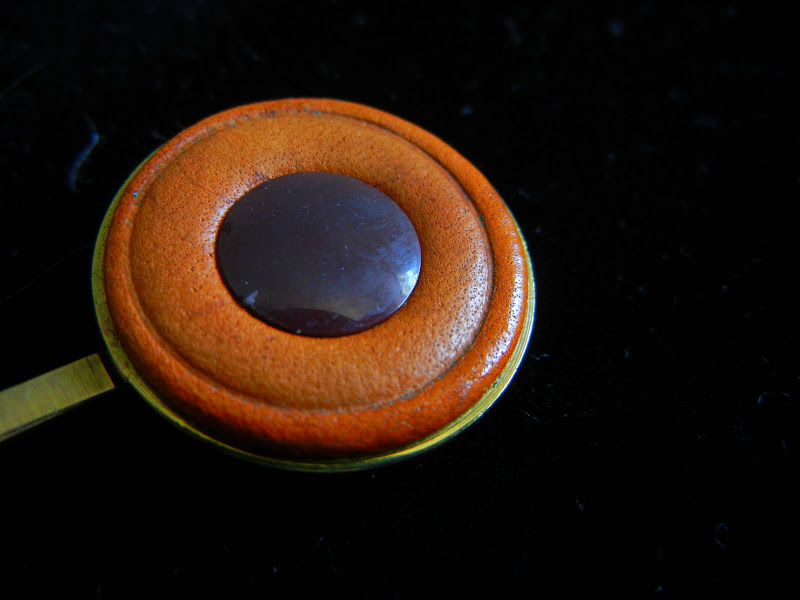

Lacquer overspray on an original Selmer Mark VI pad. This is the side Bb key, which is sprung shut, so the outer rim of the pad got lacquer overspray while the inside of the tonehole impression did not:

DSCN2071

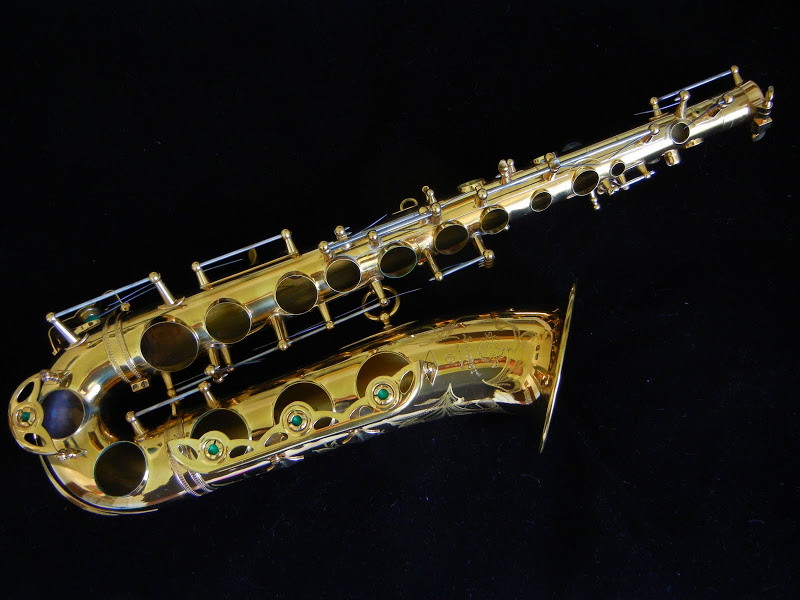

Disassembled.  And the reason for the double arm shadow on the low Bb (which would normally only have one arm there) is revealed: this was a low A alto.

DSCN2069
